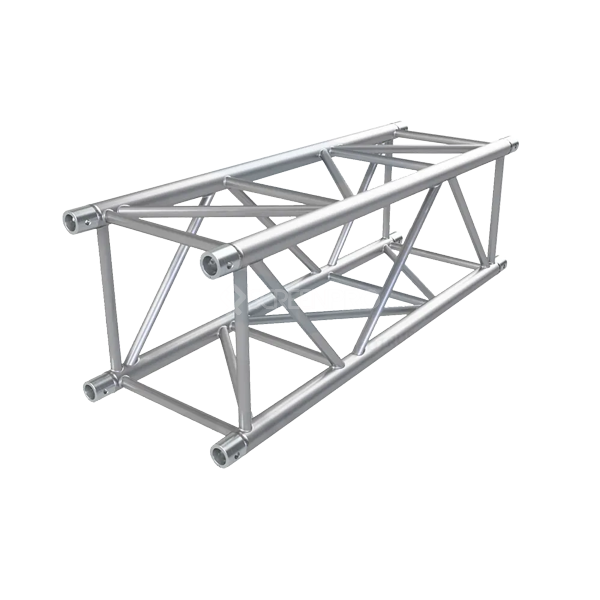

Eurotruss HD44 SQUARE TRUSS - truss with excellent load capacity on free spans of 18m or to be used as tower elements. HD44 is using the 3mm wall thickness in the maintube which assures durability and extra strength. Designed for high frequency usage or installations, which demands higher loading.
Ideal trussing system for rental, touring and exhibition companies.
Made with the fast connection system and approved according the DIN EN 1999-1-1 & 1999-1-1/A2 (Eurocode 9).
Specifications
| Height | 400 mm |
| Width | 400 mm |
| Main Tube | 50 x 3 mm |
| Braces | 25 x 2 mm |
| Weight | ~9,5 kg/m |
| Pin Position | Diagonal |
| Material | EN AW-6082 T6 |
| Connection | CS1 – CON |
| Body color | Black or clear aluminium |
